Definitions for Inspection report rates

Here is a quick definition of each Rating from the inspection report.

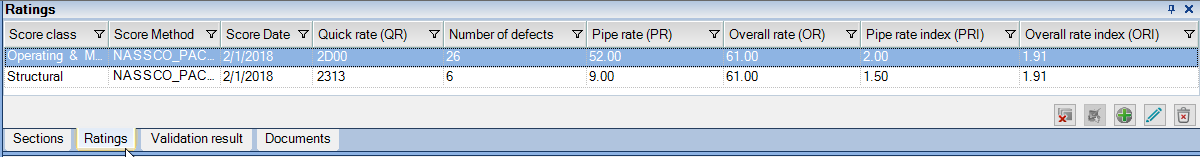

QSR         -Quick Structural Rate:         This is a shorthand way of expressing the number of occurrences for the two highest severity grades from Structural grades. E.g. 2D00 means the two highest severity grades are 2 and 0, and the D represents the number 26 that is the number of occurrences of grade 2, and the last 0 means there were no more grades other than 2.

QMR     -Quick Operational and Maintenance Rate:        This is a shorthand way of expressing the number of occurrences for the two highest severity grades from O&M grades. E.g. 2313 means the two highest severity grades are 2 and 1, and the 3 (second and fourth number) is the number of occurrences of each grade.

SPR        -Structural Pipe Rate:        This is calculated by adding all of the grades from Structural grades.

MPR     -Operational and Maintenace Pipe Rate:        This is calculated by adding all of the grades from O&M grades.

OPR                 -Overall Pipe Rate:       This is calculated by adding SPR and MPR together.

SPRI     -Structural Pipe Rate Index:        This is calculated by adding all of the grades from Structural grades divided by the number of defects.

MPRI     -O&M Pipe Rate Index:        This is calculated by adding all of the grades from Operational and Maintenance grades divided by the number of defects.

OPRI      - Overall Pipe Rate Index:       This is calculated by dividing the Overall Pipe Rate(OPR) by the total number of defects including Structural and O&M.
